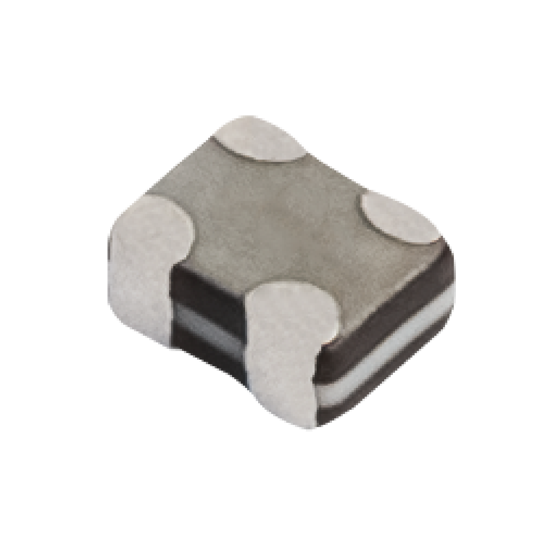

ZLML080640G1 Series Products
| Part number | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Impedance(Ω)
|
Tolerance
|
DCR(mΩ)(Max.)
|
Rated Current (Amp)(Max.)
|
Insulation Resistance(MΩ)/(Min.)
|
Rated Voltage(Vdc)/(Max.)
|
|
ZLML080640G1120JS
|
0.85 | 0.65 | 0.40 | 12 | 5Ω | 2.5000 | 0.1300 | 10 | 5 / 12.5 |
|
ZLML080640G1350MS
|
0.85 | 0.65 | 0.40 | 35 | 20% | 3.0000 | 0.1000 | 10 | 5 / 12.5 |
|
ZLML080640G1470MS
|
0.85 | 0.65 | 0.40 | 47 | 20% | 3.5000 | 0.1000 | 10 | 5 / 12.5 |
|
ZLML080640G1900MS
|
0.85 | 0.65 | 0.40 | 90 | 20% | 4.0000 | 0.1000 | 10 | 5 / 12.5 |
