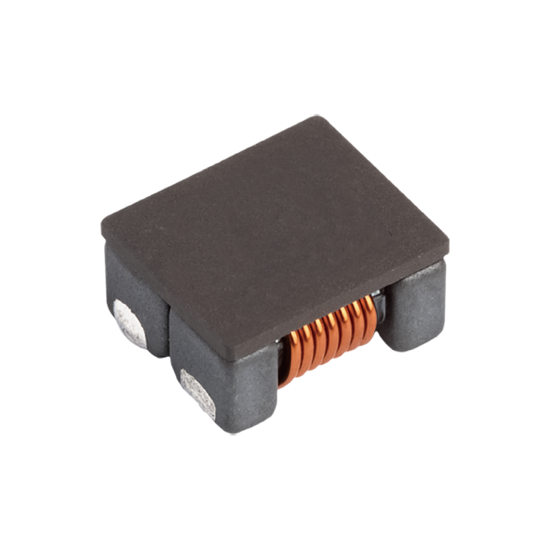

ZLML070640F1 Series Products
| Part number | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
L (mm)
|
W (mm)
|
T (mm)
|
Impedance(Ω)
|
Tolerance
|
DCR(mΩ)(Max.)
|
Rated Current (Amp)(Max.)
|
Insulation Resistance(MΩ)/(Min.)
|
Rated Voltage(Vdc)/(Max.)
|
|
ZLML070640F1700YA
|
7.5 | 6 | 3.8 | 70 | 0.005 | 15 | 10 | 80 | |
|
ZLML070640F1141YA
|
7.5 | 6 | 3.8 | 140 | 0.01 | 9 | 10 | 80 | |
|
ZLML070640F1301YA
|
7.5 | 6 | 3.8 | 300 | 0.01 | 5 | 10 | 80 | |
|
ZLML070640F1451YA
|
7.5 | 6 | 3.8 | 450 | 0.01 | 5 | 10 | 80 | |
|
ZLML070640F1701YA
|
7.5 | 6 | 3.8 | 700 | 0.015 | 4 | 10 | 80 | |
|
ZLML070640F1102YA
|
7.5 | 6 | 3.8 | 1020 | 0.017 | 3 | 10 | 80 | |
