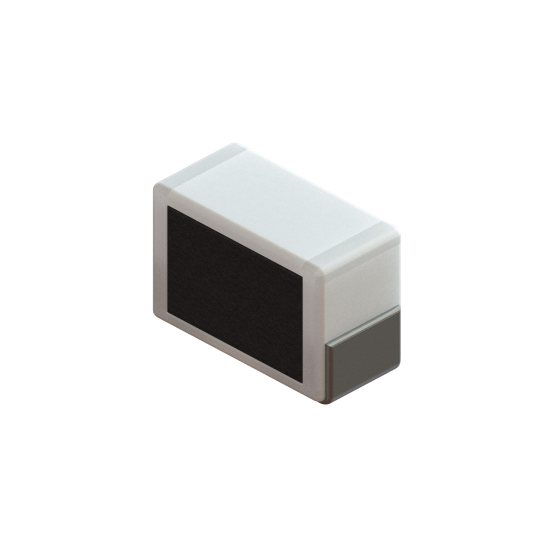

ZHFL040203H1 Series Products

Part number
L (mm)
W (mm)
T (mm)
Inductance(uH)
Tolerance
DCR(Ω)(Max.)
DCR (Ω)(Typ.)
Isat (Amp)(Typ.)
Irms (Amp)(Typ.)
Isat (Amp)(Max.)
Irms (Amp)(Max.)
SRF(MHz)
ZHFL040203H10N2SS
 0.4 0.2 0.3 0.0002 0.3nH 0.01000 17000
ZHFL040203H10N2CS
 0.4 0.2 0.3 0.0002 0.2nH 0.01000 17000
ZHFL040203H10N2BS
 0.4 0.2 0.3 0.0002 0.1nH 0.01000 17000
ZHFL040203H10N3SS
 0.4 0.2 0.3 0.0003 0.3nH 0.01500 17000
ZHFL040203H10N3CS
 0.4 0.2 0.3 0.0003 0.2nH 0.01500 17000
ZHFL040203H10N3BS
 0.4 0.2 0.3 0.0003 0.1nH 0.01500 17000
ZHFL040203H10N4SS
 0.4 0.2 0.3 0.0004 0.3nH 0.03000 17000
ZHFL040203H10N4CS
 0.4 0.2 0.3 0.0004 0.2nH 0.03000 17000
ZHFL040203H10N4BS
 0.4 0.2 0.3 0.0004 0.1nH 0.03000 17000
ZHFL040203H10N5SS
 0.4 0.2 0.3 0.0005 0.3nH 0.04000 17000
ZHFL040203H10N5CS
 0.4 0.2 0.3 0.0005 0.2nH 0.04000 17000
ZHFL040203H10N5BS
 0.4 0.2 0.3 0.0005 0.1nH 0.04000 17000
ZHFL040203H10N6SS
 0.4 0.2 0.3 0.0006 0.3nH 0.05000 17000
ZHFL040203H10N6CS
 0.4 0.2 0.3 0.0006 0.2nH 0.05000 17000
ZHFL040203H10N6BS
 0.4 0.2 0.3 0.0006 0.1nH 0.05000 17000
ZHFL040203H10N7SS
 0.4 0.2 0.3 0.0007 0.3nH 0.05000 15500
ZHFL040203H10N7CS
 0.4 0.2 0.3 0.0007 0.2nH 0.05000 15500
ZHFL040203H10N7BS
 0.4 0.2 0.3 0.0007 0.1nH 0.05000 15500
ZHFL040203H10N8SS
 0.4 0.2 0.3 0.0008 0.3nH 0.05000 15000
ZHFL040203H10N8CS
 0.4 0.2 0.3 0.0008 0.2nH 0.05000 15000
ZHFL040203H10N8BS
 0.4 0.2 0.3 0.0008 0.1nH 0.05000 15000
ZHFL040203H10N9SS
 0.4 0.2 0.3 0.0009 0.3nH 0.05000 14500
ZHFL040203H10N9CS
 0.4 0.2 0.3 0.0009 0.2nH 0.05000 14500
ZHFL040203H10N9BS
 0.4 0.2 0.3 0.0009 0.1nH 0.05000 14500
ZHFL040203H11N0SS
 0.4 0.2 0.3 0.001 0.3nH 0.05000 13000
ZHFL040203H11N0CS
 0.4 0.2 0.3 0.001 0.2nH 0.05000 13000
ZHFL040203H11N0BS
 0.4 0.2 0.3 0.001 0.1nH 0.05000 13000
ZHFL040203H11N1SS
 0.4 0.2 0.3 0.0011 0.3nH 0.07000 13000
ZHFL040203H11N1CS
 0.4 0.2 0.3 0.0011 0.2nH 0.07000 13000
ZHFL040203H11N1BS
 0.4 0.2 0.3 0.0011 0.1nH 0.07000 13000
ZHFL040203H11N2SS
 0.4 0.2 0.3 0.0012 0.3nH 0.07000 12500
ZHFL040203H11N2CS
 0.4 0.2 0.3 0.0012 0.2nH 0.07000 12500
ZHFL040203H11N2BS
 0.4 0.2 0.3 0.0012 0.1nH 0.07000 12500
ZHFL040203H11N3SS
 0.4 0.2 0.3 0.0013 0.3nH 0.08000 12500
ZHFL040203H11N3CS
 0.4 0.2 0.3 0.0013 0.2nH 0.08000 12500
ZHFL040203H11N3BS
 0.4 0.2 0.3 0.0013 0.1nH 0.08000 12500
ZHFL040203H11N4BS
 0.4 0.2 0.3 0.0014 0.1nH 0.08000 10500
ZHFL040203H11N4SS
 0.4 0.2 0.3 0.0014 0.3nH 0.08000 10500
ZHFL040203H11N4CS
 0.4 0.2 0.3 0.0014 0.2nH 0.08000 10500
ZHFL040203H11N5SS
 0.4 0.2 0.3 0.0015 0.3nH 0.08000 11000
ZHFL040203H11N5CS
 0.4 0.2 0.3 0.0015 0.2nH 0.08000 11000
ZHFL040203H11N5BS
 0.4 0.2 0.3 0.0015 0.1nH 0.08000 11000
ZHFL040203H11N6SS
 0.4 0.2 0.3 0.0016 0.3nH 0.08000 11000
ZHFL040203H11N6CS
 0.4 0.2 0.3 0.0016 0.2nH 0.08000 11000
ZHFL040203H11N6BS
 0.4 0.2 0.3 0.0016 0.1nH 0.08000 11000
ZHFL040203H11N7SS
 0.4 0.2 0.3 0.0017 0.3nH 0.08000 11000
ZHFL040203H11N7CS
 0.4 0.2 0.3 0.0017 0.2nH 0.08000 11000
ZHFL040203H11N7BS
 0.4 0.2 0.3 0.0017 0.1nH 0.08000 11000
ZHFL040203H11N8SS
 0.4 0.2 0.3 0.0018 0.3nH 0.08000 10000
ZHFL040203H11N8CS
 0.4 0.2 0.3 0.0018 0.2nH 0.08000 10000
ZHFL040203H11N8BS
 0.4 0.2 0.3 0.0018 0.1nH 0.08000 10000
ZHFL040203H11N9SS
 0.4 0.2 0.3 0.0019 0.3nH 0.08000 10500
ZHFL040203H11N9CS
 0.4 0.2 0.3 0.0019 0.2nH 0.08000 10500
ZHFL040203H11N9BS
 0.4 0.2 0.3 0.0019 0.1nH 0.08000 10500
ZHFL040203H12N0SS
 0.4 0.2 0.3 0.002 0.3nH 0.10000 10000
ZHFL040203H12N0CS
 0.4 0.2 0.3 0.002 0.2nH 0.10000 10000
ZHFL040203H12N0BS
 0.4 0.2 0.3 0.002 0.1nH 0.10000 10000
ZHFL040203H12N1SS
 0.4 0.2 0.3 0.0021 0.3nH 0.10000 10000
ZHFL040203H12N1CS
 0.4 0.2 0.3 0.0021 0.2nH 0.10000 10000
ZHFL040203H12N1BS
 0.4 0.2 0.3 0.0021 0.1nH 0.10000 10000
ZHFL040203H12N2BS
 0.4 0.2 0.3 0.0022 0.1nH 0.20000 9500
ZHFL040203H12N2SS
 0.4 0.2 0.3 0.0022 0.3nH 0.20000 9500
ZHFL040203H12N2CS
 0.4 0.2 0.3 0.0022 0.2nH 0.20000 9500
ZHFL040203H12N3SS
 0.4 0.2 0.3 0.0023 0.3nH 0.20000 10000
ZHFL040203H12N3CS
 0.4 0.2 0.3 0.0023 0.2nH 0.20000 10000
ZHFL040203H12N3BS
 0.4 0.2 0.3 0.0023 0.1nH 0.20000 10000
ZHFL040203H12N4CS
 0.4 0.2 0.3 0.0024 0.2nH 0.20000 9000
ZHFL040203H12N4BS
 0.4 0.2 0.3 0.0024 0.1nH 0.20000 9000
ZHFL040203H12N4SS
 0.4 0.2 0.3 0.0024 0.3nH 0.20000 9000
ZHFL040203H12N5SS
 0.4 0.2 0.3 0.0025 0.3nH 0.20000 9500
ZHFL040203H12N5CS
 0.4 0.2 0.3 0.0025 0.2nH 0.20000 9500
ZHFL040203H12N5BS
 0.4 0.2 0.3 0.0025 0.1nH 0.20000 9500
ZHFL040203H12N6BS
 0.4 0.2 0.3 0.0026 0.1nH 0.20000 9500
ZHFL040203H12N6SS
 0.4 0.2 0.3 0.0026 0.3nH 0.20000 9500
ZHFL040203H12N6CS
 0.4 0.2 0.3 0.0026 0.2nH 0.20000 9500
ZHFL040203H12N7SS
 0.4 0.2 0.3 0.0027 0.3nH 0.20000 9000
ZHFL040203H12N7CS
 0.4 0.2 0.3 0.0027 0.2nH 0.20000 9000
ZHFL040203H12N7BS
 0.4 0.2 0.3 0.0027 0.1nH 0.20000 9000
ZHFL040203H12N8SS
 0.4 0.2 0.3 0.0028 0.3nH 0.20000 9000
ZHFL040203H12N8CS
 0.4 0.2 0.3 0.0028 0.2nH 0.20000 9000
ZHFL040203H12N8BS
 0.4 0.2 0.3 0.0028 0.1nH 0.20000 9000
ZHFL040203H12N9SS
 0.4 0.2 0.3 0.0029 0.3nH 0.20000 9000
ZHFL040203H12N9CS
 0.4 0.2 0.3 0.0029 0.2nH 0.20000 9000
ZHFL040203H12N9BS
 0.4 0.2 0.3 0.0029 0.1nH 0.20000 9000
ZHFL040203H13N0SS
 0.4 0.2 0.3 0.003 0.3nH 0.20000 8500
ZHFL040203H13N0CS
 0.4 0.2 0.3 0.003 0.2nH 0.20000 8500
ZHFL040203H13N0BS
 0.4 0.2 0.3 0.003 0.1nH 0.20000 8500
ZHFL040203H13N1CS
 0.4 0.2 0.3 0.0031 0.2nH 0.25000 8500
ZHFL040203H13N1BS
 0.4 0.2 0.3 0.0031 0.1nH 0.25000 8500
ZHFL040203H13N1SS
 0.4 0.2 0.3 0.0031 0.3nH 0.25000 8500
ZHFL040203H13N2SS
 0.4 0.2 0.3 0.0032 0.3nH 0.25000 8000
ZHFL040203H13N2CS
 0.4 0.2 0.3 0.0032 0.2nH 0.25000 8000
ZHFL040203H13N2BS
 0.4 0.2 0.3 0.0032 0.1nH 0.25000 8000
ZHFL040203H13N3SS
 0.4 0.2 0.3 0.0033 0.3nH 0.25000 8000
ZHFL040203H13N3CS
 0.4 0.2 0.3 0.0033 0.2nH 0.25000 8000
ZHFL040203H13N3BS
 0.4 0.2 0.3 0.0033 0.1nH 0.25000 8000
ZHFL040203H13N4SS
 0.4 0.2 0.3 0.0034 0.3nH 0.30000 8000
ZHFL040203H13N4CS
 0.4 0.2 0.3 0.0034 0.2nH 0.30000 8000
ZHFL040203H13N4BS
 0.4 0.2 0.3 0.0034 0.1nH 0.30000 8000
ZHFL040203H13N5CS
 0.4 0.2 0.3 0.0035 0.2nH 0.30000 8000
ZHFL040203H13N5BS
 0.4 0.2 0.3 0.0035 0.1nH 0.30000 8000
ZHFL040203H13N5SS
 0.4 0.2 0.3 0.0035 0.3nH 0.30000 8000
ZHFL040203H13N6BS
 0.4 0.2 0.3 0.0036 0.1nH 0.30000 8000
ZHFL040203H13N6SS
 0.4 0.2 0.3 0.0036 0.3nH 0.30000 8000
ZHFL040203H13N6CS
 0.4 0.2 0.3 0.0036 0.2nH 0.30000 8000
ZHFL040203H13N7BS
 0.4 0.2 0.3 0.0037 0.1nH 0.35000 8000
ZHFL040203H13N7SS
 0.4 0.2 0.3 0.0037 0.3nH 0.35000 8000
ZHFL040203H13N7CS
 0.4 0.2 0.3 0.0037 0.2nH 0.35000 8000
ZHFL040203H13N8SS
 0.4 0.2 0.3 0.0038 0.3nH 0.35000 8000
ZHFL040203H13N8CS
 0.4 0.2 0.3 0.0038 0.2nH 0.35000 8000
ZHFL040203H13N8BS
 0.4 0.2 0.3 0.0038 0.1nH 0.35000 8000
ZHFL040203H13N9SS
 0.4 0.2 0.3 0.0039 0.3nH 0.35000 7500
ZHFL040203H13N9CS
 0.4 0.2 0.3 0.0039 0.2nH 0.35000 7500
ZHFL040203H13N9BS
 0.4 0.2 0.3 0.0039 0.1nH 0.35000 7500
ZHFL040203H14N0CS
 0.4 0.2 0.3 0.004 0.2nH 0.35000 7000
ZHFL040203H14N0BS
 0.4 0.2 0.3 0.004 0.1nH 0.35000 7000
ZHFL040203H14N0SS
 0.4 0.2 0.3 0.004 0.3nH 0.35000 7000
ZHFL040203H14N1SS
 0.4 0.2 0.3 0.0041 0.3nH 0.35000 7000
ZHFL040203H14N1CS
 0.4 0.2 0.3 0.0041 0.2nH 0.35000 7000
ZHFL040203H14N1BS
 0.4 0.2 0.3 0.0041 0.1nH 0.35000 7000
ZHFL040203H14N2SS
 0.4 0.2 0.3 0.0042 0.3nH 0.35000 7000
ZHFL040203H14N2CS
 0.4 0.2 0.3 0.0042 0.2nH 0.35000 7000
ZHFL040203H14N2BS
 0.4 0.2 0.3 0.0042 0.1nH 0.35000 7000
ZHFL040203H14N3SS
 0.4 0.2 0.3 0.0043 0.3nH 0.35000 7000
ZHFL040203H14N3JS
 0.4 0.2 0.3 0.0043 5% 0.35000 7000
ZHFL040203H14N3HS
 0.4 0.2 0.3 0.0043 3% 0.35000 7000
ZHFL040203H14N7SS
 0.4 0.2 0.3 0.0047 0.3nH 0.35000 6500
ZHFL040203H14N7JS
 0.4 0.2 0.3 0.0047 5% 0.35000 6500
ZHFL040203H14N7HS
 0.4 0.2 0.3 0.0047 3% 0.35000 6500
ZHFL040203H15N1SS
 0.4 0.2 0.3 0.0051 0.3nH 0.35000 6500
ZHFL040203H15N1JS
 0.4 0.2 0.3 0.0051 5% 0.35000 6500
ZHFL040203H15N1HS
 0.4 0.2 0.3 0.0051 3% 0.35000 6500
ZHFL040203H15N6SS
 0.4 0.2 0.3 0.0056 0.3nH 0.40000 6000
ZHFL040203H15N6JS
 0.4 0.2 0.3 0.0056 5% 0.40000 6000
ZHFL040203H15N6HS
 0.4 0.2 0.3 0.0056 3% 0.40000 6000
ZHFL040203H16N2JS
 0.4 0.2 0.3 0.0062 5% 0.40000 6000
ZHFL040203H16N2HS
 0.4 0.2 0.3 0.0062 3% 0.40000 6000
ZHFL040203H16N8HS
 0.4 0.2 0.3 0.0068 3% 0.40000 5500
ZHFL040203H16N8JS
 0.4 0.2 0.3 0.0068 5% 0.40000 5500
ZHFL040203H17N5HS
 0.4 0.2 0.3 0.0075 3% 0.50000 5500
ZHFL040203H17N5JS
 0.4 0.2 0.3 0.0075 5% 0.50000 5500
ZHFL040203H18N2JS
 0.4 0.2 0.3 0.0082 5% 0.50000 5000
ZHFL040203H18N2HS
 0.4 0.2 0.3 0.0082 3% 0.50000 5000
ZHFL040203H19N1JS
 0.4 0.2 0.3 0.0091 5% 0.50000 5000
ZHFL040203H19N1HS
 0.4 0.2 0.3 0.0091 3% 0.50000 5000
ZHFL040203H110NJS
 0.4 0.2 0.3 0.01 5% 0.60000 5000
ZHFL040203H110NHS
 0.4 0.2 0.3 0.01 3% 0.60000 5000
ZHFL040203H111NJS
 0.4 0.2 0.3 0.011 5% 0.80000 4000
ZHFL040203H111NHS
 0.4 0.2 0.3 0.011 3% 0.80000 4000
ZHFL040203H112NJS
 0.4 0.2 0.3 0.012 5% 0.82000 4000
ZHFL040203H112NHS
 0.4 0.2 0.3 0.012 3% 0.82000 4000
ZHFL040203H113NJS
 0.4 0.2 0.3 0.013 5% 0.99000 4000
ZHFL040203H113NHS
 0.4 0.2 0.3 0.013 3% 0.99000 4000
ZHFL040203H115NJS
 0.4 0.2 0.3 0.015 5% 1.53000 4000
ZHFL040203H115NHS
 0.4 0.2 0.3 0.015 3% 1.53000 4000
ZHFL040203H116NJS
 0.4 0.2 0.3 0.016 5% 1.53000 4000
ZHFL040203H116NHS
 0.4 0.2 0.3 0.016 3% 1.53000 4000
ZHFL040203H118NJS
 0.4 0.2 0.3 0.018 5% 1.63000 3700
ZHFL040203H118NHS
 0.4 0.2 0.3 0.018 3% 1.63000 3700
ZHFL040203H120NJS
 0.4 0.2 0.3 0.02 5% 2.26000 3000
ZHFL040203H120NHS
 0.4 0.2 0.3 0.02 3% 2.26000 3000
ZHFL040203H122NJS
 0.4 0.2 0.3 0.022 5% 2.26000 3000
ZHFL040203H122NHS
 0.4 0.2 0.3 0.022 3% 2.26000 3000
ZHFL040203H124NJS
 0.4 0.2 0.3 0.024 5% 2.60000 2900
ZHFL040203H124NHS
 0.4 0.2 0.3 0.024 3% 2.60000 2900
ZHFL040203H127NJS
 0.4 0.2 0.3 0.027 5% 2.60000 2900
ZHFL040203H127NHS
 0.4 0.2 0.3 0.027 3% 2.60000 2900
ZHFL040203H130NJS
 0.4 0.2 0.3 0.03 5% 3.20000 2600
ZHFL040203H130NHS
 0.4 0.2 0.3 0.03 3% 3.20000 2600
ZHFL040203H133NJS
 0.4 0.2 0.3 0.033 5% 3.20000 2600
ZHFL040203H133NHS
 0.4 0.2 0.3 0.033 3% 3.20000 2600
ZHFL040203H136NJS
 0.4 0.2 0.3 0.036 5% 3.60000 2400
ZHFL040203H136NHS
 0.4 0.2 0.3 0.036 3% 3.60000 2400
ZHFL040203H139NJS
 0.4 0.2 0.3 0.039 5% 3.60000 2400
ZHFL040203H139NHS
 0.4 0.2 0.3 0.039 3% 3.60000 2400
ZHFL040203H143NJS
 0.4 0.2 0.3 0.043 5% 4.00000 2100
ZHFL040203H143NHS
 0.4 0.2 0.3 0.043 3% 4.00000 2100
ZHFL040203H147NJS
 0.4 0.2 0.3 0.047 5% 4.00000 2100
ZHFL040203H147NHS
 0.4 0.2 0.3 0.047 3% 4.00000 2100
ZHFL040203H151NJS
 0.4 0.2 0.3 0.051 5% 4.20000 1900
ZHFL040203H151NHS
 0.4 0.2 0.3 0.051 3% 4.20000 1900
ZHFL040203H156NJS
 0.4 0.2 0.3 0.056 5% 4.20000 1900
ZHFL040203H156NHS
 0.4 0.2 0.3 0.056 3% 4.20000 1900
