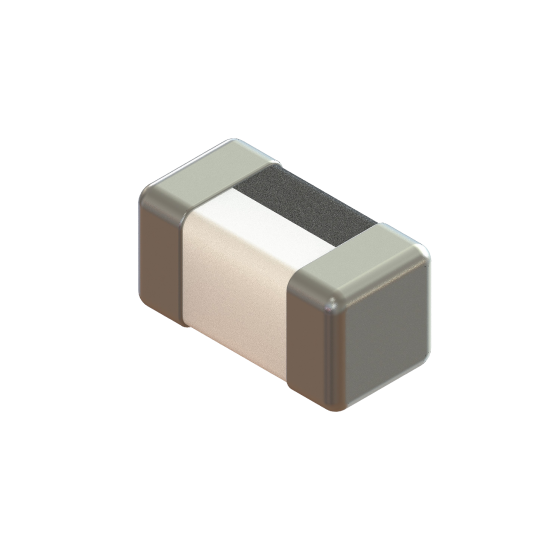

ZHFL040202H1 Series Products

Part number
L (mm)
W (mm)
T (mm)
Inductance(uH)
Tolerance
DCR(Ω)(Max.)
DCR (Ω)(Typ.)
Isat (Amp)(Typ.)
Irms (Amp)(Typ.)
Isat (Amp)(Max.)
Irms (Amp)(Max.)
SRF(MHz)
ZHFL040202H10N2SS
 0.4 0.2 0.2 0.0002 0.3nH 0.40000 13000
ZHFL040202H10N2CS
 0.4 0.2 0.2 0.0002 0.2nH 0.40000 13000
ZHFL040202H10N2BS
 0.4 0.2 0.2 0.0002 0.1nH 0.40000 13000
ZHFL040202H10N3SS
 0.4 0.2 0.2 0.0003 0.3nH 0.40000 13000
ZHFL040202H10N3CS
 0.4 0.2 0.2 0.0003 0.2nH 0.40000 13000
ZHFL040202H10N3BS
 0.4 0.2 0.2 0.0003 0.1nH 0.40000 13000
ZHFL040202H10N4BS
 0.4 0.2 0.2 0.0004 0.1nH 0.40000 13000
ZHFL040202H10N4SS
 0.4 0.2 0.2 0.0004 0.3nH 0.40000 13000
ZHFL040202H10N4CS
 0.4 0.2 0.2 0.0004 0.2nH 0.40000 13000
ZHFL040202H10N5SS
 0.4 0.2 0.2 0.0005 0.3nH 0.40000 13000
ZHFL040202H10N5CS
 0.4 0.2 0.2 0.0005 0.2nH 0.40000 13000
ZHFL040202H10N5BS
 0.4 0.2 0.2 0.0005 0.1nH 0.40000 13000
ZHFL040202H10N6SS
 0.4 0.2 0.2 0.0006 0.3nH 0.40000 13000
ZHFL040202H10N6CS
 0.4 0.2 0.2 0.0006 0.2nH 0.40000 13000
ZHFL040202H10N6BS
 0.4 0.2 0.2 0.0006 0.1nH 0.40000 13000
ZHFL040202H10N7SS
 0.4 0.2 0.2 0.0007 0.3nH 0.40000 13000
ZHFL040202H10N7CS
 0.4 0.2 0.2 0.0007 0.2nH 0.40000 13000
ZHFL040202H10N7BS
 0.4 0.2 0.2 0.0007 0.1nH 0.40000 13000
ZHFL040202H10N8SS
 0.4 0.2 0.2 0.0008 0.3nH 0.40000 13000
ZHFL040202H10N8CS
 0.4 0.2 0.2 0.0008 0.2nH 0.40000 13000
ZHFL040202H10N8BS
 0.4 0.2 0.2 0.0008 0.1nH 0.40000 13000
ZHFL040202H10N9BS
 0.4 0.2 0.2 0.0009 0.1nH 0.40000 13000
ZHFL040202H10N9SS
 0.4 0.2 0.2 0.0009 0.3nH 0.40000 13000
ZHFL040202H10N9CS
 0.4 0.2 0.2 0.0009 0.2nH 0.40000 13000
ZHFL040202H11N0SS
 0.4 0.2 0.2 0.001 0.3nH 0.40000 11500
ZHFL040202H11N0CS
 0.4 0.2 0.2 0.001 0.2nH 0.40000 11500
ZHFL040202H11N0BS
 0.4 0.2 0.2 0.001 0.1nH 0.40000 11500
ZHFL040202H11N1SS
 0.4 0.2 0.2 0.0011 0.3nH 0.40000 11500
ZHFL040202H11N1CS
 0.4 0.2 0.2 0.0011 0.2nH 0.40000 11500
ZHFL040202H11N1BS
 0.4 0.2 0.2 0.0011 0.1nH 0.40000 11500
ZHFL040202H11N2BS
 0.4 0.2 0.2 0.0012 0.1nH 0.40000 11500
ZHFL040202H11N2CS
 0.4 0.2 0.2 0.0012 0.2nH 0.40000 11500
ZHFL040202H11N2SS
 0.4 0.2 0.2 0.0012 0.3nH 0.40000 11500
ZHFL040202H11N3SS
 0.4 0.2 0.2 0.0013 0.3nH 0.40000 11500
ZHFL040202H11N3CS
 0.4 0.2 0.2 0.0013 0.2nH 0.40000 11500
ZHFL040202H11N3BS
 0.4 0.2 0.2 0.0013 0.1nH 0.40000 11500
ZHFL040202H11N4SS
 0.4 0.2 0.2 0.0014 0.3nH 0.40000 11500
ZHFL040202H11N4CS
 0.4 0.2 0.2 0.0014 0.2nH 0.40000 11500
ZHFL040202H11N4BS
 0.4 0.2 0.2 0.0014 0.1nH 0.40000 11500
ZHFL040202H11N5SS
 0.4 0.2 0.2 0.0015 0.3nH 0.40000 11500
ZHFL040202H11N5CS
 0.4 0.2 0.2 0.0015 0.2nH 0.40000 11500
ZHFL040202H11N5BS
 0.4 0.2 0.2 0.0015 0.1nH 0.40000 11500
ZHFL040202H11N6SS
 0.4 0.2 0.2 0.0016 0.3nH 0.40000 11500
ZHFL040202H11N6CS
 0.4 0.2 0.2 0.0016 0.2nH 0.40000 11500
ZHFL040202H11N6BS
 0.4 0.2 0.2 0.0016 0.1nH 0.40000 11500
ZHFL040202H11N7SS
 0.4 0.2 0.2 0.0017 0.3nH 0.50000 9500
ZHFL040202H11N7CS
 0.4 0.2 0.2 0.0017 0.2nH 0.50000 9500
ZHFL040202H11N7BS
 0.4 0.2 0.2 0.0017 0.1nH 0.50000 9500
ZHFL040202H11N8SS
 0.4 0.2 0.2 0.0018 0.3nH 0.50000 9000
ZHFL040202H11N8CS
 0.4 0.2 0.2 0.0018 0.2nH 0.50000 9000
ZHFL040202H11N8BS
 0.4 0.2 0.2 0.0018 0.1nH 0.50000 9000
ZHFL040202H11N9SS
 0.4 0.2 0.2 0.0019 0.3nH 0.50000 9000
ZHFL040202H11N9CS
 0.4 0.2 0.2 0.0019 0.2nH 0.50000 9000
ZHFL040202H11N9BS
 0.4 0.2 0.2 0.0019 0.1nH 0.50000 9000
ZHFL040202H12N0SS
 0.4 0.2 0.2 0.002 0.3nH 0.50000 9000
ZHFL040202H12N0CS
 0.4 0.2 0.2 0.002 0.2nH 0.50000 9000
ZHFL040202H12N0BS
 0.4 0.2 0.2 0.002 0.1nH 0.50000 9000
ZHFL040202H12N1SS
 0.4 0.2 0.2 0.0021 0.3nH 0.50000 9000
ZHFL040202H12N1CS
 0.4 0.2 0.2 0.0021 0.2nH 0.50000 9000
ZHFL040202H12N1BS
 0.4 0.2 0.2 0.0021 0.1nH 0.50000 9000
ZHFL040202H12N2SS
 0.4 0.2 0.2 0.0022 0.3nH 0.55000 7500
ZHFL040202H12N2CS
 0.4 0.2 0.2 0.0022 0.2nH 0.55000 7500
ZHFL040202H12N2BS
 0.4 0.2 0.2 0.0022 0.1nH 0.55000 7500
ZHFL040202H12N3SS
 0.4 0.2 0.2 0.0023 0.3nH 0.55000 7500
ZHFL040202H12N3CS
 0.4 0.2 0.2 0.0023 0.2nH 0.55000 7500
ZHFL040202H12N3BS
 0.4 0.2 0.2 0.0023 0.1nH 0.55000 7500
ZHFL040202H12N4CS
 0.4 0.2 0.2 0.0024 0.2nH 0.55000 7500
ZHFL040202H12N4BS
 0.4 0.2 0.2 0.0024 0.1nH 0.55000 7500
ZHFL040202H12N4SS
 0.4 0.2 0.2 0.0024 0.3nH 0.55000 7500
ZHFL040202H12N5SS
 0.4 0.2 0.2 0.0025 0.3nH 0.60000 7500
ZHFL040202H12N5CS
 0.4 0.2 0.2 0.0025 0.2nH 0.60000 7500
ZHFL040202H12N5BS
 0.4 0.2 0.2 0.0025 0.1nH 0.60000 7500
ZHFL040202H12N6SS
 0.4 0.2 0.2 0.0026 0.3nH 0.60000 7500
ZHFL040202H12N6CS
 0.4 0.2 0.2 0.0026 0.2nH 0.60000 7500
ZHFL040202H12N6BS
 0.4 0.2 0.2 0.0026 0.1nH 0.60000 7500
ZHFL040202H12N7BS
 0.4 0.2 0.2 0.0027 0.1nH 0.60000 7500
ZHFL040202H12N7SS
 0.4 0.2 0.2 0.0027 0.3nH 0.60000 7500
ZHFL040202H12N7CS
 0.4 0.2 0.2 0.0027 0.2nH 0.60000 7500
ZHFL040202H12N8BS
 0.4 0.2 0.2 0.0028 0.1nH 0.80000 7500
ZHFL040202H12N8SS
 0.4 0.2 0.2 0.0028 0.3nH 0.80000 7500
ZHFL040202H12N8CS
 0.4 0.2 0.2 0.0028 0.2nH 0.80000 7500
ZHFL040202H12N9SS
 0.4 0.2 0.2 0.0029 0.3nH 0.80000 7500
ZHFL040202H12N9CS
 0.4 0.2 0.2 0.0029 0.2nH 0.80000 7500
ZHFL040202H12N9BS
 0.4 0.2 0.2 0.0029 0.1nH 0.80000 7500
ZHFL040202H13N0SS
 0.4 0.2 0.2 0.003 0.3nH 0.90000 7500
ZHFL040202H13N0CS
 0.4 0.2 0.2 0.003 0.2nH 0.90000 7500
ZHFL040202H13N0BS
 0.4 0.2 0.2 0.003 0.1nH 0.90000 7500
ZHFL040202H13N1SS
 0.4 0.2 0.2 0.0031 0.3nH 0.90000 7500
ZHFL040202H13N1CS
 0.4 0.2 0.2 0.0031 0.2nH 0.90000 7500
ZHFL040202H13N1BS
 0.4 0.2 0.2 0.0031 0.1nH 0.90000 7500
ZHFL040202H13N2SS
 0.4 0.2 0.2 0.0032 0.3nH 0.90000 7500
ZHFL040202H13N2CS
 0.4 0.2 0.2 0.0032 0.2nH 0.90000 7500
ZHFL040202H13N2BS
 0.4 0.2 0.2 0.0032 0.1nH 0.90000 7500
ZHFL040202H13N3SS
 0.4 0.2 0.2 0.0033 0.3nH 0.90000 7500
ZHFL040202H13N3CS
 0.4 0.2 0.2 0.0033 0.2nH 0.90000 7500
ZHFL040202H13N3BS
 0.4 0.2 0.2 0.0033 0.1nH 0.90000 7500
ZHFL040202H13N4SS
 0.4 0.2 0.2 0.0034 0.3nH 1.00000 7500
ZHFL040202H13N4CS
 0.4 0.2 0.2 0.0034 0.2nH 1.00000 7500
ZHFL040202H13N4BS
 0.4 0.2 0.2 0.0034 0.1nH 1.00000 7500
ZHFL040202H13N5SS
 0.4 0.2 0.2 0.0035 0.3nH 1.00000 7500
ZHFL040202H13N5CS
 0.4 0.2 0.2 0.0035 0.2nH 1.00000 7500
ZHFL040202H13N5BS
 0.4 0.2 0.2 0.0035 0.1nH 1.00000 7500
ZHFL040202H13N6SS
 0.4 0.2 0.2 0.0036 0.3nH 1.00000 7500
ZHFL040202H13N6CS
 0.4 0.2 0.2 0.0036 0.2nH 1.00000 7500
ZHFL040202H13N6BS
 0.4 0.2 0.2 0.0036 0.1nH 1.00000 7500
ZHFL040202H13N7SS
 0.4 0.2 0.2 0.0037 0.3nH 1.00000 7500
ZHFL040202H13N7CS
 0.4 0.2 0.2 0.0037 0.2nH 1.00000 7500
ZHFL040202H13N7BS
 0.4 0.2 0.2 0.0037 0.1nH 1.00000 7500
ZHFL040202H13N8SS
 0.4 0.2 0.2 0.0038 0.3nH 1.00000 7500
ZHFL040202H13N8CS
 0.4 0.2 0.2 0.0038 0.2nH 1.00000 7500
ZHFL040202H13N8BS
 0.4 0.2 0.2 0.0038 0.1nH 1.00000 7500
ZHFL040202H13N9SS
 0.4 0.2 0.2 0.0039 0.3nH 1.00000 7500
ZHFL040202H13N9CS
 0.4 0.2 0.2 0.0039 0.2nH 1.00000 7500
ZHFL040202H13N9BS
 0.4 0.2 0.2 0.0039 0.1nH 1.00000 7500
ZHFL040202H14N0SS
 0.4 0.2 0.2 0.004 0.3nH 1.10000 7500
ZHFL040202H14N0CS
 0.4 0.2 0.2 0.004 0.2nH 1.10000 7500
ZHFL040202H14N0BS
 0.4 0.2 0.2 0.004 0.1nH 1.10000 7500
ZHFL040202H14N1SS
 0.4 0.2 0.2 0.0041 0.3nH 1.10000 7500
ZHFL040202H14N1CS
 0.4 0.2 0.2 0.0041 0.2nH 1.10000 7500
ZHFL040202H14N1BS
 0.4 0.2 0.2 0.0041 0.1nH 1.10000 7500
ZHFL040202H14N2SS
 0.4 0.2 0.2 0.0042 0.3nH 1.10000 7500
ZHFL040202H14N2CS
 0.4 0.2 0.2 0.0042 0.2nH 1.10000 7500
ZHFL040202H14N2BS
 0.4 0.2 0.2 0.0042 0.1nH 1.10000 7500
ZHFL040202H14N3SS
 0.4 0.2 0.2 0.0043 0.3nH 1.10000 7500
ZHFL040202H14N3JS
 0.4 0.2 0.2 0.0043 5% 1.10000 7500
ZHFL040202H14N3HS
 0.4 0.2 0.2 0.0043 3% 1.10000 7500
ZHFL040202H14N7SS
 0.4 0.2 0.2 0.0047 0.3nH 1.20000 6500
ZHFL040202H14N7JS
 0.4 0.2 0.2 0.0047 5% 1.20000 6500
ZHFL040202H14N7HS
 0.4 0.2 0.2 0.0047 3% 1.20000 6500
ZHFL040202H15N1SS
 0.4 0.2 0.2 0.0051 0.3nH 1.30000 6500
ZHFL040202H15N1JS
 0.4 0.2 0.2 0.0051 5% 1.30000 6500
ZHFL040202H15N1HS
 0.4 0.2 0.2 0.0051 3% 1.30000 6500
ZHFL040202H15N6SS
 0.4 0.2 0.2 0.0056 0.3nH 1.50000 6000
ZHFL040202H15N6JS
 0.4 0.2 0.2 0.0056 5% 1.50000 6000
ZHFL040202H15N6HS
 0.4 0.2 0.2 0.0056 3% 1.50000 6000
ZHFL040202H16N2JS
 0.4 0.2 0.2 0.0062 5% 1.60000 5500
ZHFL040202H16N2HS
 0.4 0.2 0.2 0.0062 3% 1.60000 5500
ZHFL040202H16N8JS
 0.4 0.2 0.2 0.0068 5% 1.80000 5500
ZHFL040202H16N8HS
 0.4 0.2 0.2 0.0068 3% 1.80000 5500
ZHFL040202H17N5JS
 0.4 0.2 0.2 0.0075 5% 1.80000 4500
ZHFL040202H17N5HS
 0.4 0.2 0.2 0.0075 3% 1.80000 4500
ZHFL040202H18N2JS
 0.4 0.2 0.2 0.0082 5% 2.00000 4500
ZHFL040202H18N2HS
 0.4 0.2 0.2 0.0082 3% 2.00000 4500
ZHFL040202H19N1JS
 0.4 0.2 0.2 0.0091 5% 2.00000 4000
ZHFL040202H19N1HS
 0.4 0.2 0.2 0.0091 3% 2.00000 4000
ZHFL040202H110NJS
 0.4 0.2 0.2 0.01 5% 2.20000 4000
ZHFL040202H110NHS
 0.4 0.2 0.2 0.01 3% 2.20000 4000
ZHFL040202H111NJS
 0.4 0.2 0.2 0.011 5% 2.40000 4000
ZHFL040202H111NHS
 0.4 0.2 0.2 0.011 3% 2.40000 4000
ZHFL040202H112NJS
 0.4 0.2 0.2 0.012 5% 2.40000 4000
ZHFL040202H112NHS
 0.4 0.2 0.2 0.012 3% 2.40000 4000
ZHFL040202H113NJS
 0.4 0.2 0.2 0.013 5% 3.00000 3500
ZHFL040202H113NHS
 0.4 0.2 0.2 0.013 3% 3.00000 3500
ZHFL040202H115NJS
 0.4 0.2 0.2 0.015 5% 3.00000 3000
ZHFL040202H115NHS
 0.4 0.2 0.2 0.015 3% 3.00000 3000
ZHFL040202H116NJS
 0.4 0.2 0.2 0.016 5% 3.20000 2500
ZHFL040202H116NHS
 0.4 0.2 0.2 0.016 3% 3.20000 2500
ZHFL040202H118NJS
 0.4 0.2 0.2 0.018 5% 3.20000 2500
ZHFL040202H118NHS
 0.4 0.2 0.2 0.018 3% 3.20000 2500
ZHFL040202H120NHS
 0.4 0.2 0.2 0.02 3% 4.50000 2500
ZHFL040202H120NJS
 0.4 0.2 0.2 0.02 5% 4.50000 2500
ZHFL040202H122NJS
 0.4 0.2 0.2 0.022 5% 5.00000 2300
ZHFL040202H122NHS
 0.4 0.2 0.2 0.022 3% 5.00000 2300
ZHFL040202H124NJS
 0.4 0.2 0.2 0.024 5% 5.50000 2000
ZHFL040202H124NHS
 0.4 0.2 0.2 0.024 3% 5.50000 2000
ZHFL040202H127NJS
 0.4 0.2 0.2 0.027 5% 5.50000 2000
ZHFL040202H127NHS
 0.4 0.2 0.2 0.027 3% 5.50000 2000
ZHFL040202H130NJS
 0.4 0.2 0.2 0.03 5% 6.50000 1800
ZHFL040202H130NHS
 0.4 0.2 0.2 0.03 3% 6.50000 1800
ZHFL040202H133NJS
 0.4 0.2 0.2 0.033 5% 6.50000 1800
ZHFL040202H133NHS
 0.4 0.2 0.2 0.033 3% 6.50000 1800
